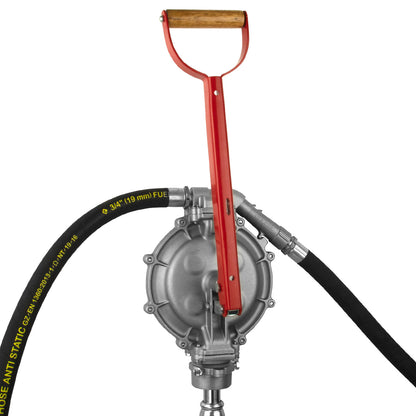

TRPISTON01 | Double Diaphragm Lever-Action Drum Barrel Pump

TRPISTON01 | Double Diaphragm Lever-Action Drum Barrel Pump

Regular price $282.70
Regular price Sale price $282.70
Sale Not Available
Shipping calculated at checkout.
TRPISTON01 is ideal for use where power is not easily available like farms, ranches, construction, sites, boats, etc.

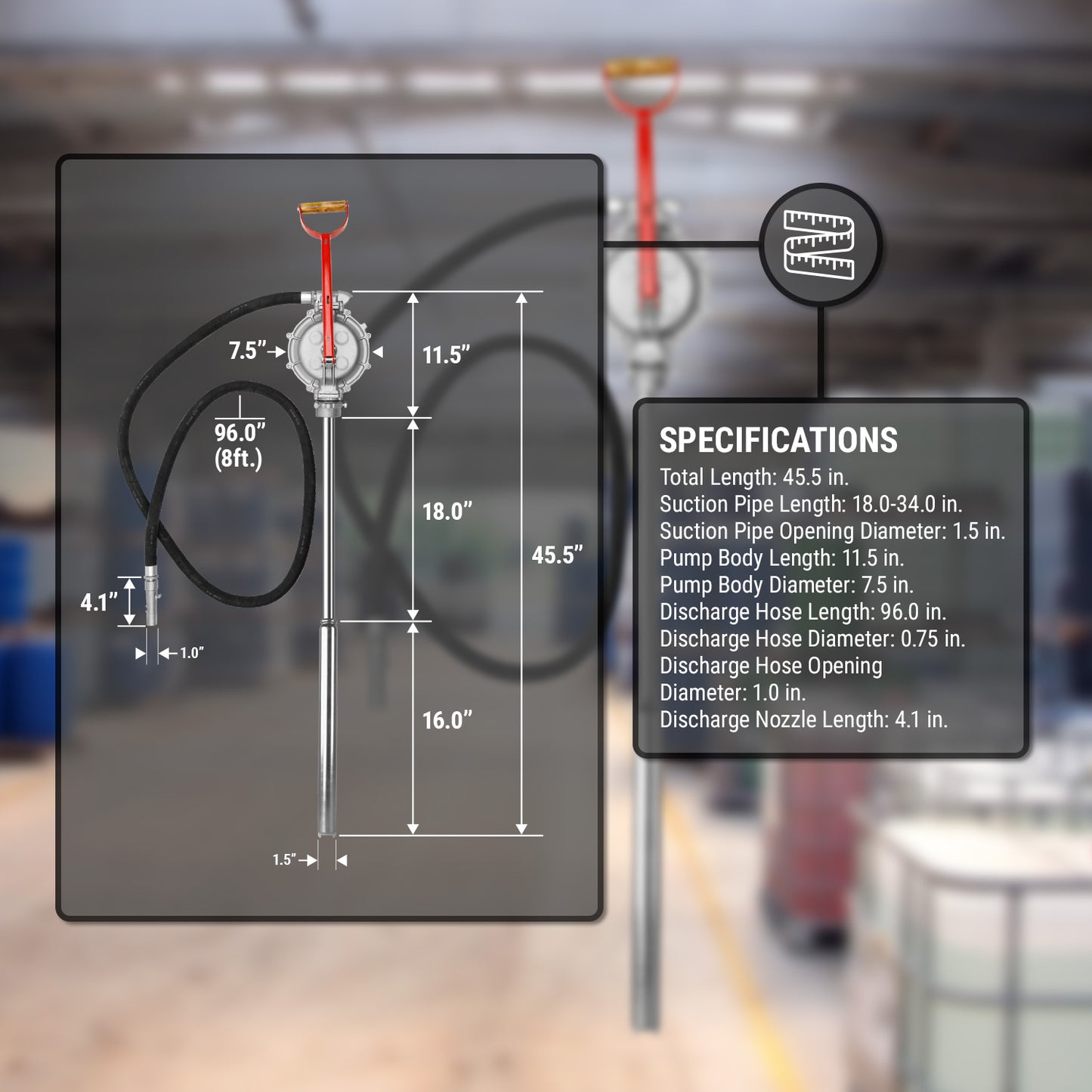

wysiwyg Specifications

  • Power: Lever-Action (Manual)
  • Flow Rate: 1 Gallon per 5 Strokes
  • Suction Tube: 18 inch to 34 inch
  • Discharge Hose: 96 inch
  • Compatible Liquids: Gasoline, e15 - e85, diesel, kerosene & motor oils


  • No Electricity Required; Utilizes siphon action to transfer liquids by a simple grip and pump

Securing latch

  • Use the pump's built-in nozzle cavity to secure hose and nozzle when not in sue
  • Use the lever lock to secure pump lever

Anti-Static Hose

  • Made with static dissipating materials to help mitigate static electricity
  • 8-ft (1.8mm) Long Neoprene Rubber with Die-Cast Nozzle
  • 3/4-inch or 19mm Diameter

Adjustable Intake Tube

  • Length of 18 inch to 34 inch
  • Fits 15, 30 & 55 Gallon Drum Barrels

NPT Bung Adapter

  • Polyethylene 2 inch (51mm) NPT thread


  • Heavy Duty Die-Cast Construction with Stainless steel Pistons

Wetted Components

  • Aluminum, Steel, Stainless Steel, Poly Acetal & NBR

Useful Tips

  • Note that Fuels containing Ethanol will cause more frequent replacement of rubber parts
  • Do not use with Fuels with Ethanol content greater than 10%
  • Pumping heavy fluids may cause undue stress resulting in fracture


  • With Corrosive Liquids, Solvents, Acids, Alkalis etc.

What's Included

  • Pump body, crank fitted with pump handle, hose spring, nozzle, hose clamp & Manual
  1. Do not run dry
  2. Wear proper personal protective equipment
  3. Never operate pump near fire or source of spark
  4. Do not turn the pump upside down after use
  5. Operate only in open, cool, and well-ventilated areas
  6. Do not over tighten any part
  • Backed by a 1-Year Manufacturers Warranty
